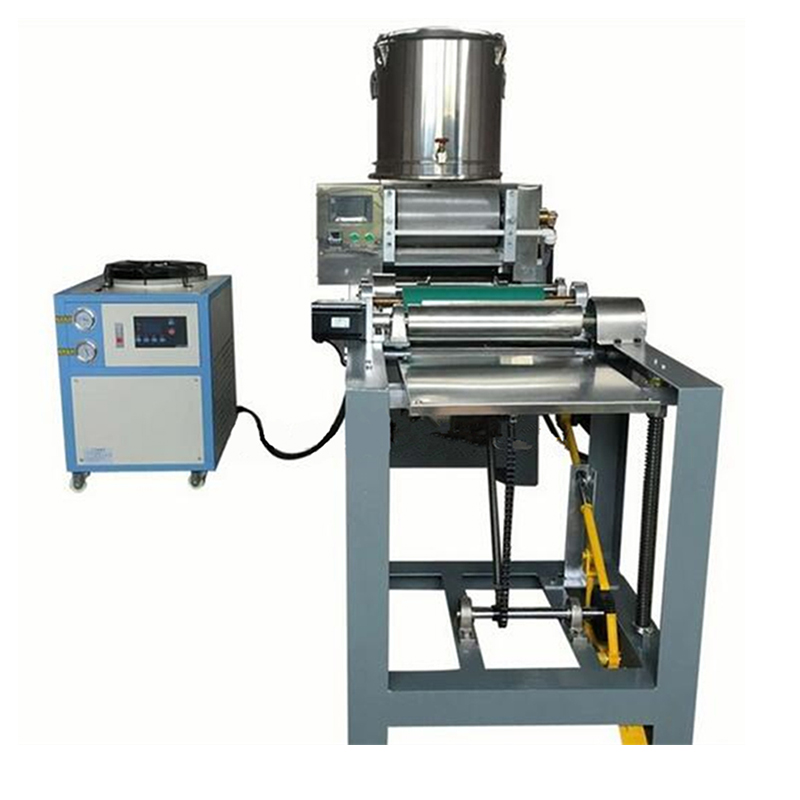

Automatic Beeswax Foundation Sheet Machine Roller
Roller size 170*350mm or customized
Cell size 5.4mm(4.9mm or 5.1mm or as request)
Small transfer Tank The liquid wax fed to the roller from 70 liter capacity transfer tank
Water Cooler Tank Keep cool the roller and not need external water more.
Thermometer Water and wax temperature are continuously under controlled by digital thermometer.
Lifting Table The foundation sheets are stacked on a lifting table
Control Pannel · Rollers and cutters speed are able to adjusted by control pannel
Wax and water temperature are under controlled by control pannel
Machine's all electric system are able to adjusted by control pannel.
Round Knives 2×3 pieces
Rorate speed 3r/min
Capacity 15-25 kg/hour
Dimension of foundation sheet Desired width is adjusted by moving the round knives as required and the lenght is adjusted by digital counter sensor on control pannel.
Material Stainless Steel (Main body)
Power Supply 380Vor 220V.3Kw (while working with all parts coolers, rollers, transfer tank, cutter, etc)
Labor Machine can be served by one employee
Warranty 1 year for any damage and technical unless caused by operating errors or carelessness or negligence.
Size of machine 2800*950*620mm
Packing Type wooden or as request
Weight of machine 790 kg
